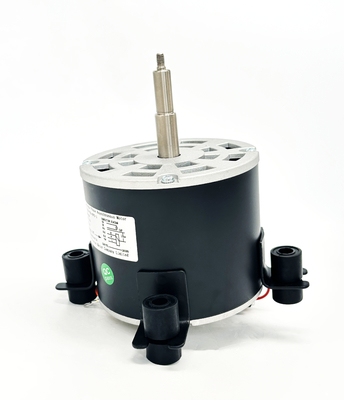

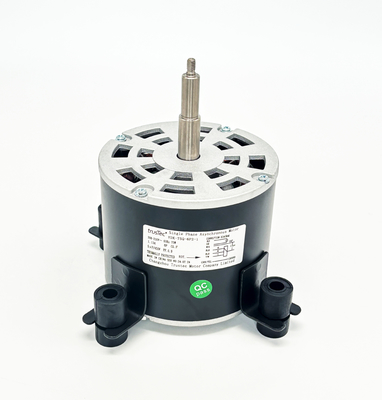

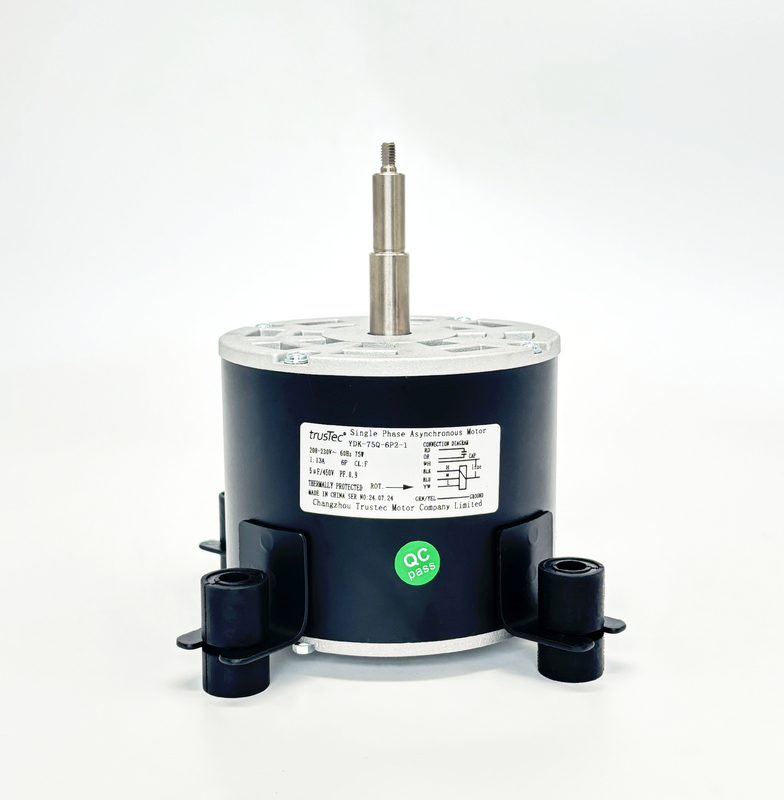

42 프레임/120mm 블러 모터 - 75W 208-230V 60HZ
원산지:창주, 중국
브랜드 이름:trusTec
인증:CE
모델 번호:YDK-75Q-6P2-1
최소 주문 수량:200 PC
가격:Negotiable (FOB/CNF/CIF)
지불 조건:T/T, L/C
공급능력:달 당 100,000 PC
태그:
제품 세부정보
강조하다:
208-230V 블로어 모터
,120mm 블로어 모터
,75W 블로어 모터
Product:
직결 구동 송풍기용전동기
Frame Size:
42 프레임/120mm
Motor Type:
영구 분할 커패시터
Supply Voltage:
220/230V
Enclosure Type:
OAO(오픈 에어 오버)
Supply Frequency:
60Hz
Thermal Overload:
자동 열 과부하 기능 탑재
Current:
1.13A
Phase:
단일 단계
Output Power:
75W
Mounting Orientation:
모든 천사
Shaft Diameter:
1/2인치 / 1.72mm
Insulation Class:
클래스 F
Lead Length:
27.5인치 / 700mm
Mounting:
모든 천사를 장착
Poles:
6P
Bearings:
볼 베어링
Max. Ambient Temperature:
40℃/104°F
Rotation:
CCW-SE
Capacitor:
5uF/370V
제품 설명
