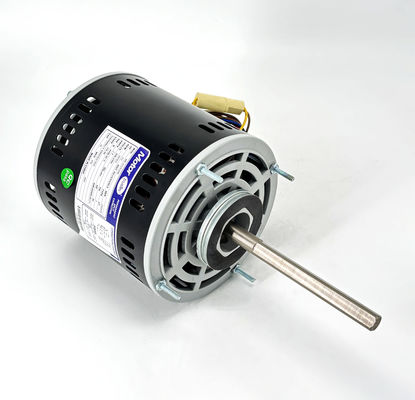

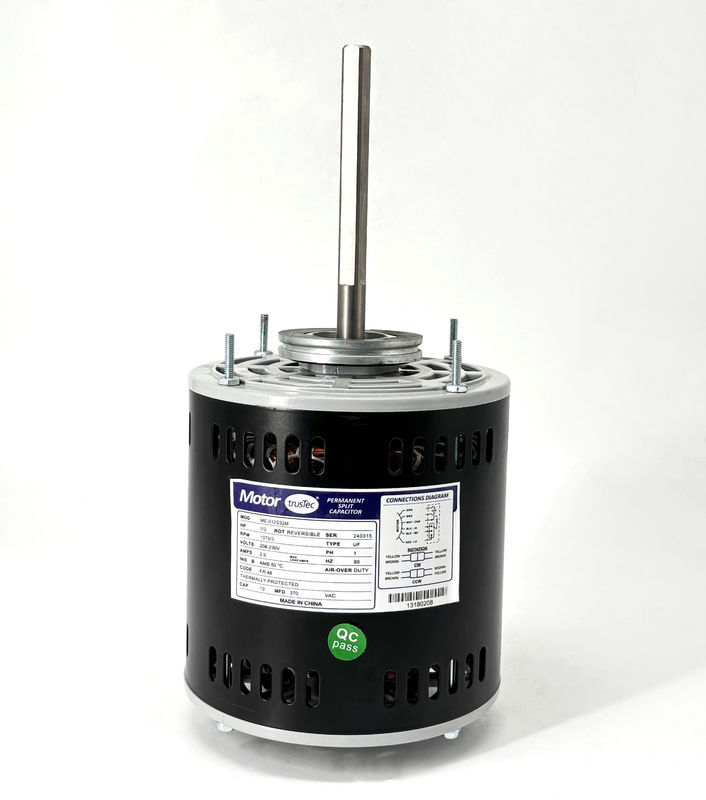

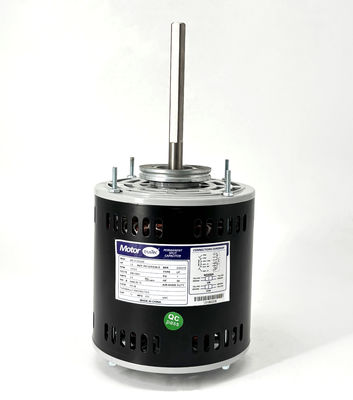

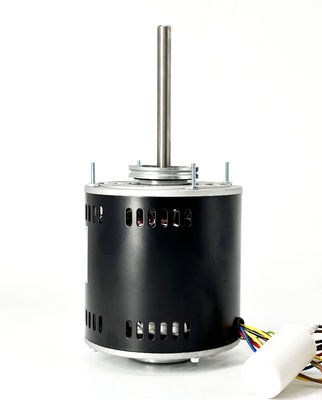

48 프레임 다이렉트 드라이브 블러 모터 - 1/2HP 1075RPM / 3SPD 208-230V 60HZ
원산지:창주, 중국
브랜드 이름:trusTec
인증:CE、UL529388
모델 번호:YDK-375-6B15-VPS
최소 주문 수량:200 PC
가격:Negotiable (FOB/CNF/CIF)
지불 조건:T/T, L/C
공급능력:달 당 100,000 PC
태그:
제품 세부정보
강조하다:
3SPD 직동 부러기 모터
,208-230V 직동 부러기 엔진
,1/2HP 직동 부러기 모터
Product:
송풍기 송풍전동기
Frame:
네마 48
Motor Type:
영구 분할 커패시터
Supply Voltage:
208-230V
Enclosure Type:
OAO(오픈 에어 오버)
Supply Frequency:
60Hz
Thermal Overload:
자동 열 과부하 기능 탑재
Current:
2.9A
Phase:
단일 단계
Output HP:
1/2HP
Shaft Flat:
직각 플랫
Speed:
1075RPM/3SPD
Mounting Orientation:
모든 각도
Capacitor:
10uF/370V
Insulation Class:
클래스 B
Pole:
6P
Bearings:
구리 라잉
Shaft Diameter:
12.7mm/0.5 "
Rotation:
CW / CCW
Flat Length:
101.6mm/4 "
Max. Ambient Temperature:
50°C/122°F
Lead Length:
24.01 "/610mm
Motor Shell Length:
142mm/5.59"
Screw Length:
14mm/0.55 "
