동영상

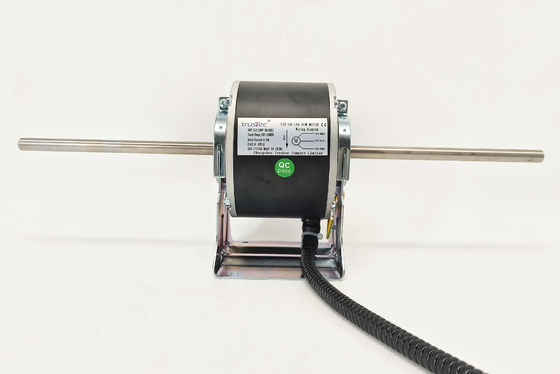

에어컨에 대한 EC 팬 코일 단위 모터 - 1/15HP 300-1150RPM 220-240V 50/60HZ
-
130W 1500RPM BLDC 모터
Product Name Permanent Magnet Synchronous Motor(PMSM) Voltage 230V Frequency 50Hz Output Power 130W Pole 8P AMPS 0.65A Speed 1500RPM Insulation Class CL.B Capacitor / Power Factor / Other protection THERMALLY PROTECTED Rated Outline Key Parameters Model Power /W Frequency /Hz Speed /RPM Current /A Voltage /V TZD95-130-8 130 50 1500 0.65 230 Ps:all dimension can be customized according to customer requirement. Product Features 1. Wide speed range, strong overload ability, high
-
고효율 EC 팬 모터 220V AC 입력 BLDC 모터 중앙 분기 블러
High efficiency EC fan motor, 220v ac input brushless motor for centrifugal blower Technical Parameters: Name EC motor(motor, power supply, driver) Input voltage AC 120V 230V 50/60Hz DC 24V 48V Operating voltage AC 100~138V 200~277V 50/60Hz DC 16~32V 36~60V Rated speed 850rpm or above Speed control 200~3000rpm variable speed 3 speeds Output power(W) 100w 150W 200W 250W 350W 500W 750w Efficiency >82%@850RPM Speed control interface a) 0~10V or PWM control b) RS485 communication
-
동영상
ECM 팬 코일 유닛 모터 - 1/6HP 300-1600RPM 120V 50/60HZ
-
동영상
ECM 팬 코일 유닛 모터 - 1/3HP 300-1600RPM 120V 50/60HZ
-
팬용 ECM 모터 - 90W 2800RPM 220V 50HZ
-
EC 송풍전동기 BLDC HVAC 송풍기용전동기 AC 120V 230V 50/60Hz DC 24V 48V 310V
EC Fan Motor - HVAC BLDC fan motor - AC 120V 230V 50/60Hz DC 24V 48V Technical Parameters of EC Fan Motor Name EC motor(motor, power supply, driver) Input voltage AC 120V 230V 50/60Hz DC 24V 48V Operating voltage AC 100~138V 200~277V 50/60Hz DC 16~32V 36~60V Rated speed 850rpm or above Speed control 200~3000rpm variable speed 3 speeds Output power(W) 100w 150W 200W 250W 350W 500W 750w Efficiency >82%@850RPM Speed control interface a) 0~10V or PWM control b) RS485 communicatio
-
단일 샤프트 EC 팬 모터 PSC BLDC 모터의 교체-50W 220V
EC Fan Motor Replacement of PSC BDC Fan Motor Technical Parameters: Voltage V Frequency Hz Input Power W Current A Output Power W Speed RPM Torque N·m ZTD-25-8 220 50 38 0.35 25 1150 0.21 ZTD-35-8 220 50 50 0.45 35 1200 0.28 ZTD-50-8 220 50 71 0.6 50 1200 0.4 ZTD-70-8 220 50 93 0.75 70 1250 0.53 ZTD-90-8 220 50 112 0.9 90 1250 0.69 ZTD-120-8 220 50 150 1.2 120 1300 0.88 ZTD-150-8 220 50 183 1.43 150 1300 1.1 ZTD-200-10 220 50 235 1.81 200 1400 1.36 ZTD-250-10 220 50 290 2.21
-
에어컨 FCU BLDC 모터 - 더블 샤프트 300~1500 RPM - 30~180W
Air Conditioner FCU BLDC Fan Motor - Double Shaft 300~1500 RPM Key Features of FCU BLDC Fan Motor Name EC motor(motor, power supply, driver) Shaft type single shaft/double shaft Shaft diameter Φ12, Φ12.7, Φ14 Output power 30W 60W 90W 120W 150W 180W Input voltage AC220V ±10% Speed control 300~1500RPM variable speed Multi speed Insulation class B/F Available Types Voltage V Frequency Hz Input Power W Current A Output Power W Speed RPM Torque N·m ZTS-25-8 220 50 38 0.35 25 1150
